Battery capacity: 6300mAh
Brand Name: LAUNCH
Certification: FCC,CE
Communication Interface: OBD-II,Bluetooth
Connection Way: Via DBSCAR VII VCI
Display Resolution: 1024*600
Display Size: 7 inches
Electronic: Yes
Expansion Module: LAUNCH i-tpms, VSP600 Videoscope, BST360 Battery Tester, Key Programmer, WiFi Printer
External Testing Certification: ce
Free update: 2 years free update
Hardware Version: 2026 Newest
Is Batteries Included: Yes
Item Type: Engine Analyzer,Engine Analyzer
Item Weight: 3.5
Main function 1: Auto VIN Scan
Main function 10: DLC Location
Main function 11: One-Click I/M Readiness
Main function 12: Voltage Monitoring
Main function 2: Advanced ECU Coding
Main function 3: Active Test (Bi-directional Control)
Main function 4: CANFD, DOIP New Protocols
Main function 5: 35 Resets
Main function 6: FCA SGW AutoAuth, you need to buy account by yourself
Main function 7: Diagnostic Report/ Record/ Feedback
Main function 8: Workshop information settings
Main function 9: DTC Library
Model Name: CRP919E BT
Operating System: Android 10.0
Origin: Mainland China
RAM: 4GB
ROM: 64GB
Software Update: Yes
Software Version: 2026 Newest
Special Features: Bluetooth,Wifi
System Diagnosis: Advanced Full System Diagnosis
Use: Not Telecommunication
Warranty: 5 Years Warranty
Wireless Support: Bluetooth
Money-saving tips for EU buyers
For EU customers, please place an order from the Chinese warehouse, and we will ship from the EU warehouse, which is cheaper and faster!
We support dropshipping, if you need to purchase multiple items, please contact the seller for the best price, Thanks
LAUNCH Officially authorized, 100% original
We are the official LAUNCH authorized store, 100% Original.

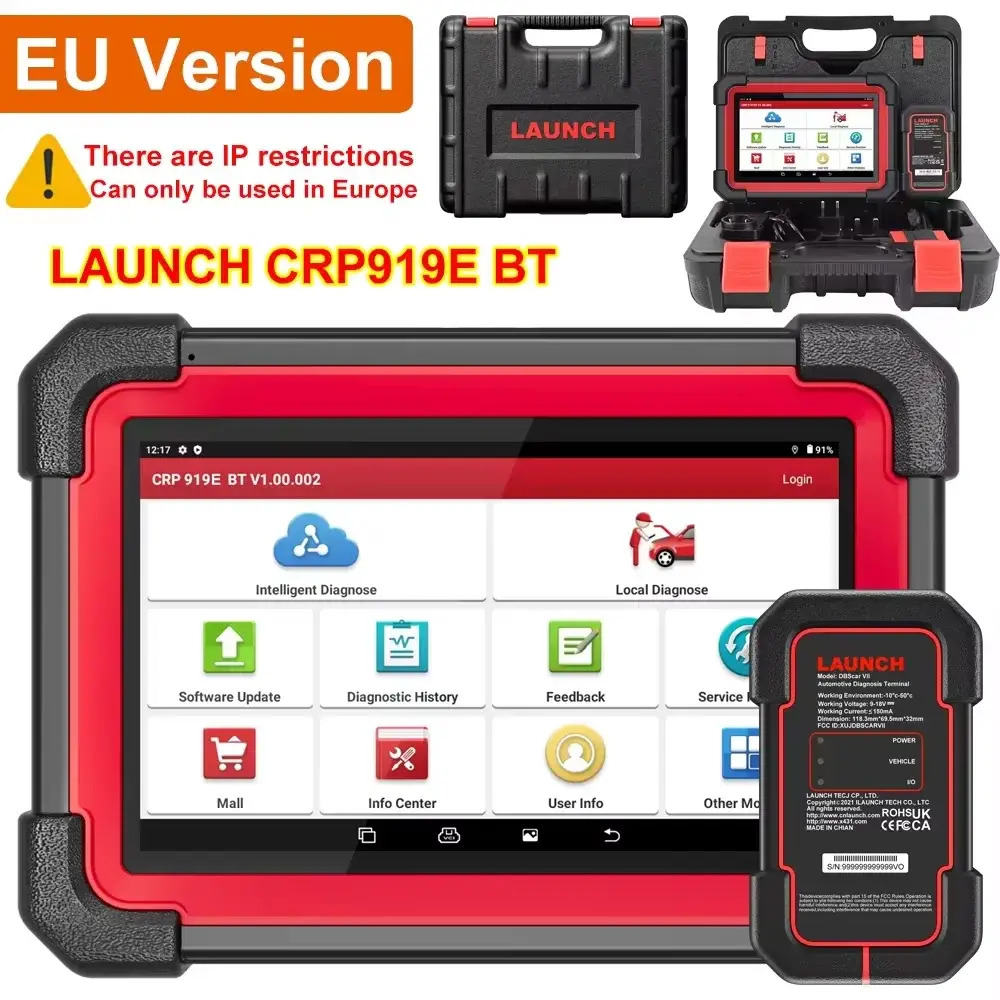

1. RU EU UK Version and Global Version support the same functions.
2. The RU EU UK Version is specially designed for European customers and only supports working in the European region (including Russia and the United Kingdom)
3. The Global Version has no IP restrictions and can be used worldwide.
LAUNCH X431 CRP919E BT is the perfect solution for global users who demand affordable and powerful tool, which combines advanced all systems diagnostics, and advanced services in one Android based 7.0 inch touchscreen tablet, provides you with superior special functions by a Android 10.0 OS, a 2.0GHz 4-core high-efficiency processor, a 4GB RAM+ 64GB ROM large memory, 8MP Rear camera and a 6300mAh high-endurance battery, using USB type A/ USB type C connectors.
RU EU UK version language
English, Russian, German, Italian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Danish, Serbian, Finnish, Swedish, Czech, Romanian
Global version language
English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Arabic, Turkish, Dutch, Greek, Hungarian, Danish, Persian, Serbian, Finnish, Swedish, Czech, Traditional Chinese, Simplified Chinese
Supports CANFD and DIOP protocol now, it supports For GM after 2020 and other New cars !
Support CAN FD protocol cars connecting directly, need Purchase extra DOIP Connector, the application of new protocols CAN FD/ DoIP boosts 2x faster vehicle communication between modules, get much higher data rates & faster diagnostic speed than ever, for GM vehicles 2020-, and compatible for BMW F G Chassis models, for Jaguar & for Land Rover after 2017, for Volvo after 2018.
CANFD
it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer
DOIP protocol
With Diagnostics over DOIP, diagnostics introduced over UDS are used over TCP/ IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH CRP919E BT save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications.
Compatible with for BMW (for F&G chassis), for Volvo models (2018 later), for Land Rover & for Jaguar models (2017 later).
( Note: this is car list that CANFD and DIOP supports, CRP919E BT also supports other cars, more than about 100+ brands, like for bmw, for vw, for ford etc, there has the detailed car list in the following description, you can check ）
Autoauth for FCA SGW (Need to pay extra)
Use the latest software update function AutoAuth to provide diagnosis, active testing, etc., making the diagnostics more secure. Applicable to FCA vehicles ( for Chrysler, for Dodge, for Fiat, etc. after 2017) equipped with a security gateway module (SGW).
OE-LEVEL All Systems Diagnostic, support 99% Vehicles worldwide
The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :
1. PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more…
2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more…
3. BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more…
4. Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.
It supports the detailed Function :
— read fault codes: read and decode the DTCs to identify where the fault location is;
— clear fault codes: erase the DTCs to turn off the MIL after repairs;
–retrieve ecu information: allows you to retrieve vehicle information;
— Graph live data stream: view the dynamic data stream to determine vehicle condition
— ECU Coding : Match, learn, or code the new ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.
— Active Test ( Bi-directionnal Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.
With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:
For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.
For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.
For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.
For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.
For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.
Active Test & Bi-directional control
Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators.
For example, CRP919E BT have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage.
Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.
Advanced ECU coding, saving you time and money!
LAUNCH X-431 CRP919E BT scan tool newly adds ECU Coding which can Online Coding (ONLY for VW, for Audi, for Skoda), Variant Coding / Offline Programming, Flash Hidden Functions, Reset Adaptive Data, Match Replaced Components, Customize OE-Settings.
Such as: halogen fog lamps retrofitted with xenon fog lamps, different capacity battery retrofit, disbale auto start-stop, sunroof initialization, injector calibration, etc. PS: Coding functions vary by model & year.
Please note that not all models support all the reset functions described. Some models do not have a reset function, and some models only have one or several reset functions. This depends on your vehicle and year. Please understand. Thank you.
1. SAS Reset – Steering Angle Reset
To reset the steering angle, you must first find the relative zero point position when the vehicle is traveling in a straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.
After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.
2. Electronic Parking Brake Reset
This function enables you to reset the brake pad after replacing the brake pad.
lt needs to be performed in the following cases:
1. The brake pad and brake pad wear sensor are replaced.
2. The brake pad indicator lamp is on.
3. The brake pad sensor circuit is short, which is recovered.
4. Replace the servo motor.
3. Gear Learning
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336′ gear not learned’.
In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC ‘gear not learned” is present, gear learning must be performed.
4. Oil Reset
This function enables you to reset the oil service for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for trouble shooting. After that, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric appliances that monitor oil life, you need to reset the service lamp.
5. IMMO Reset
This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced.
6. Injector Coding
This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder, so as to more accurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECU or injector is replaced.
7. TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.
Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.
8. Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.
lt needs to be performed in the following cases:
1. The main battery is replaced.
2. The battery monitoring sensor is replaced.
9. ABS Bleeding
This function allows you to perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced.
10. Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators and returns the learned values stored on ECU to the default state.
Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.
11. Diesel Particulate Filter (DPF) Regeneration
This function enables you to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.
12. Air Suspension Calibration
This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the air suspension system.
2. When the vehicle height is incorrect.
13. AFS Reset (Adaptive Front-lighting System)
This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.
14. Sunroof Initialization
This function enables you to set the sunroof lock off, closed when it rains, sliding/ tilting sunroof memory function, temperature threshold outside the car etc.
15. Gearbox Matching
This function enables you to complete the gearbox self-learning to improve gear shifting quality.
lt needs to be performed in the following cases:
When the gearbox is disassembled or repaired.
16. EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
17. Language Change
This function is used to change the system language of the vehicle central control panel.
18. AF Reset
This function is applied to set or learn airlfuel rate parameters.
19. Coolant Bleed
Use this function to activate the electric water pump before venting the cooling system.
20. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.
21. Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
22. Stop Start Reset
This function is used to open or close the automatic Start Stop function via setting the hidden function in ECU.
(The precondition is vehicle equipped with hidden function and hardware support).
23. Transport Mode
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.
24. Tyre Reset
25. Windows Calibration
This function is used to perform door window matching to recover the ECu initial memory, and recover the automatic ascending and descending function of power window.
26. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.
27. AC System Initialization
When the vehicle’s air conditioning ECU actuator is replaced or the ECU memory is lost, the air conditioning system must be relearned/ initialized.
28. Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it is replaced or repaired.
29. Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.
30. MOTOR ANGLE CALIBRATION
31. High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status information detection.
32. Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.
33. Clutch Reset
34. TURBO Reset
35. Reset Hide
…. More maintenance features will be continuously updated.
Support LAUNCH expansion module to expand more functions
[LAUNCH VSP600 Videoscope]
This module allows you to check those unseen parts of engine, fuel tank, and braking system etc. It needs to work with the compatible Videoscope (sold separately).
[LAUNCH BST360 Battery Tester]
This module allows you to fix battery detection faster and easier.It needs to work with the specific Bluetooth Battery tester (sold separately).
[LAUNCH Immobilizer Programmer]
This module allows you to perform the read-write function for vehicle keys, EEPROM, MCU, and EEPROM/ FLASH of vehicle engine and gearbox ECU. It needs to work with the specific immobilizer programmer (sold separately).
[LAUNCH Key Programmer]
The module can identify car key chips and generate various types of chip models from super remotes, read the remote-control frequency of car keys, and generate remote control devices for different car models from various types of super remotes. It needs to work with the compatible key programmer (sold separately).
[LAUNCH X431 WiFi Printer]
LAUNCH CRP919E BT can be connected to WIFI printers to print out diagnostic data or reports.
High-End Blueooth Tech
LAUNCH CRP919E BT Say no narrow working Range, break free From Limitations
Over 115 Car Brands, 10,000+ Models
For ASTONMARTIN
For AUDI
For AUSTHOLDEN
For BAIC (For Beijing Automotive/ For BAIC Senova/ For BAIC Weiwang/ For Beijing Automotive EV)
For BENZ (For Mercedes-Benz/ For Maybach)
For BMW (For BMW/ For Brilliance BMW/ For Rolls-Royce/ For Mini)
For Fiat (Brazil)
For GM (Brazil)
For CHANGAN
For CHANGCHENG
For CHANGHE (For Changhe/ For Changhe Suzuki)
For CHRYSLER ( For Chrysler/ For Dodge/ For Jeep)
For CITROEN ( For Citroën/ For Dongfeng Citroën)
For DAEWOO
For DAIHATSU
For FERRARI
For FIAT (For Fiat/ For Abarth/ For Alfa Romeo/ For Lancia/ For Nanjing Fiat)
For FUTIAN (For Beiqi FUTIAN)
For GAZ
For GM (For GM/ For Chevrolet/ For Cadillac/ For Buick)
For HMAZDA
For HONDA (For Honda/ For Acura/ For Dongfeng Honda/ For GAC Honda)
For HUACHEN
For HYUNDAI
For MAHINDRA INDIAN
For MARUTI INDIAN
For TATA INDIAN
For IVECO
For JACTY
For JIAO
For JINLONG
For JOYLONG
For JPISUZU
For KIA
For HYUNDAI KOREA
For KIA KOREA
For LANDROVER (For Jaguar/ For Land Rover)
For LUXGEN
For MASERATI
For MAZDA
For MITSUBISHI (For Mitsubishi/ For Mitsubishi Guangzhou)
For MYHRTY
For NISSAN ( For Nissan/ For Infiniti/ For Nissan GTR/ For Dongfeng Nissan/ For Venucia)
For OPEL
For PERODUA ( For Perodua)
For PEUGEOT (For Peugeot/ For Dongfeng Peugeot)
For PORSCHE
For PROTON
For QIRUI_TY
For RENAULT (For Renault/ For Dacia)
For ROVER
For SAAB
For SAICMG
For SAICROEWE
For SEAT
For SGM (For GM China / For Chevrolet China / For Cadillac China /For Buick China )
For SKODA
For SMART
For SPRINTER
For SSANGYONG
For SUBARU
For SUZUKI
For TOYOTA (For Toyota/ For Lexus/ For Toyota China)
For FORD USA (For Ford/ For Lincoln/ For Ford China)
For VAZ
For VOLVO
For Volvo/ For Lynk & Co
For VW (For Volkswagen/ For Bentley/ For Bugatti/ For Lamborghini)
For ZHONGTAI
For ZHONGXING

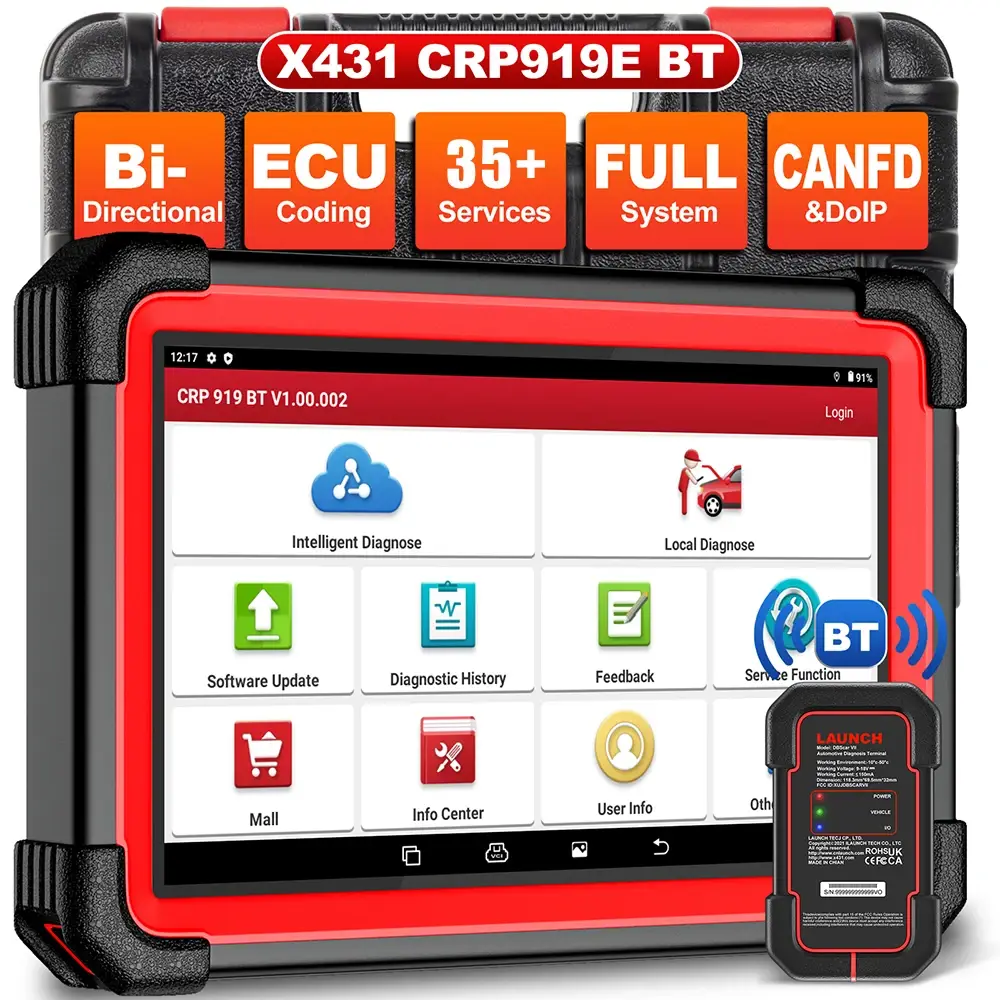

LAUNCH CRP919E BT Technical Specifications
■ Screen Size: 7-inch LCD screen (1024*600)
■ Android Version: Android 10.0
■ Processor: 2.0GHz, Quad-core
■ Battery Capacity: 6300mAh (7.6V)
Equivalent: ≈12600mAh (3.7V)
Power Consumption: ≈47.8Wh
■ Camera: 8MP Rear Camera
■ Wi-Fi: 2.4GHz 5GHz
■ Gross Weight: 2.9KG
■ RAM: 4GB
■ Storage Size: 64GB (System Display: 25GB)
■ Upgrade Method: Online Upgrade
■ Charging Power: 5V 5A (25W)

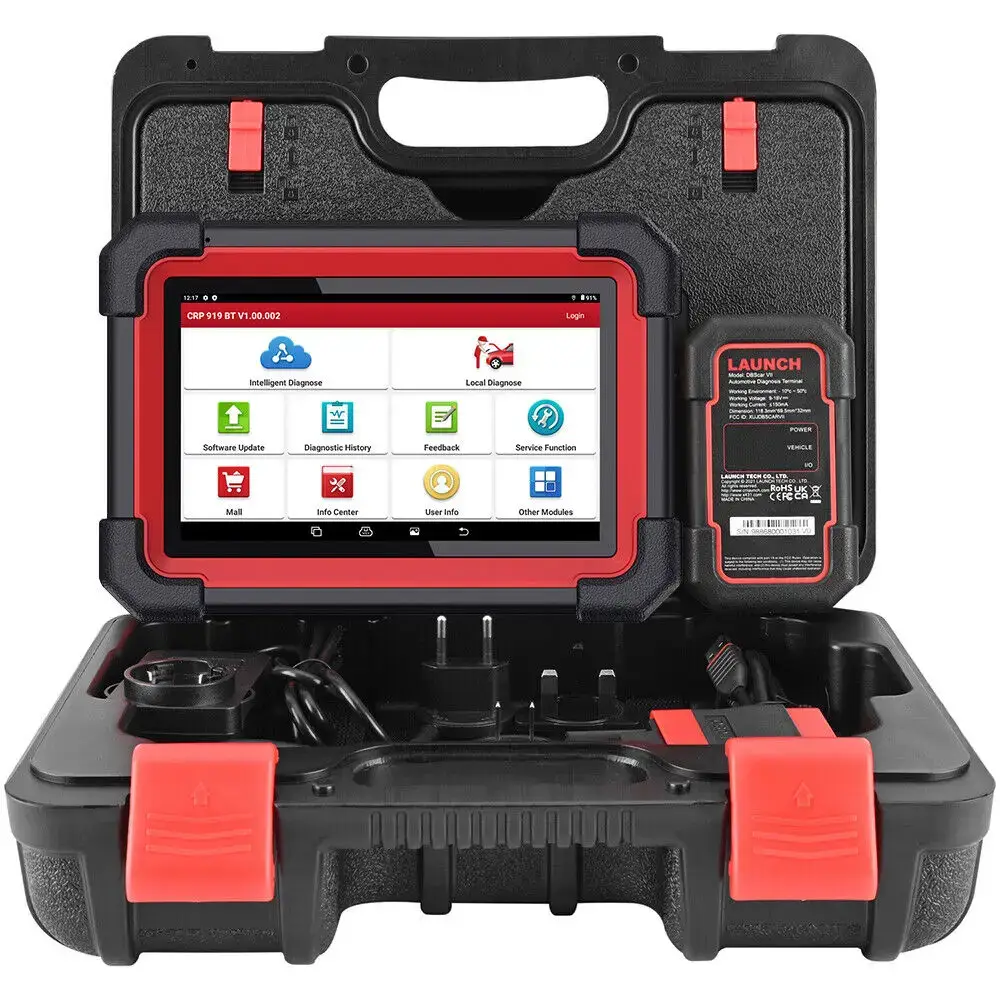

LAUNCH CRP919E BT Packing List
1PC * LAUNCH CRP919E BT Android Tablet
1PC * VCI bluetooth connector
1PC * Diagnostic Cable
1PC * OBDII 16pin connector
1PC * Data USB Cable
1PC * DC Power Charging Cable (with US, UK and EU charger )
1PC * User Manual
1PC * Quick Start Guider
1PC * Plactis package
| Color | Global Version, EU RU UK Version |
|---|---|
| Ships From | United States |
Reviews
There are no reviews yet.
